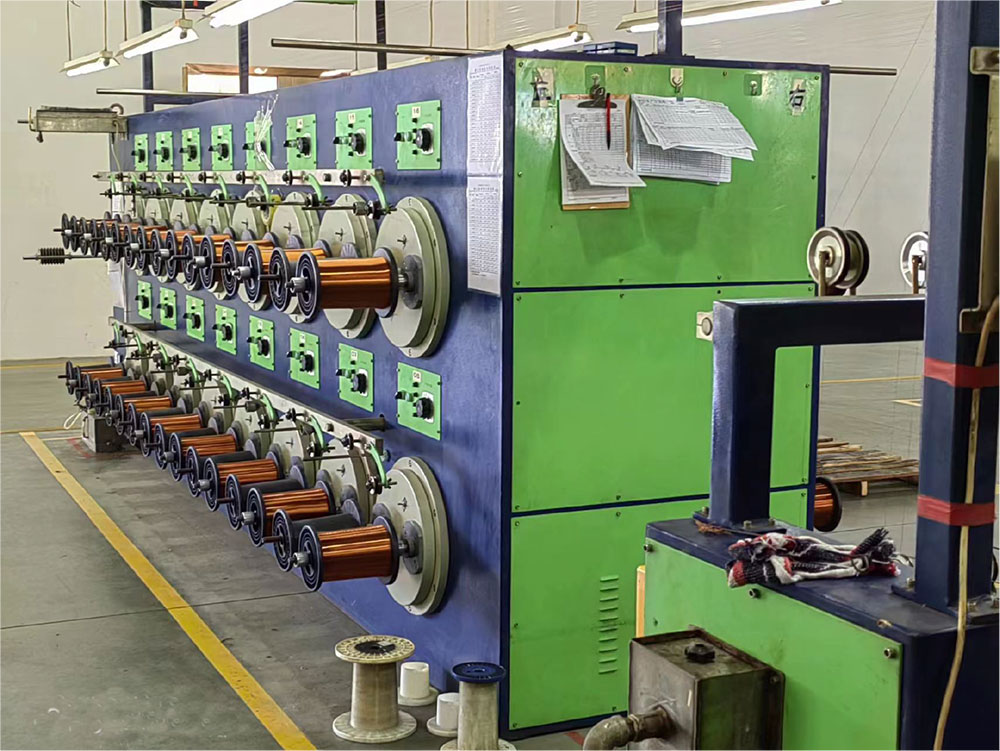

| Type | RQM-QBXF-4500 |
| Wire range | φ0.10-φ0.30mm |
| No. of line | 24、28、32、36、40 |
| No. Of passes perline | 8 – 12 |
| Wire pitch | 5.5 -6.5 mm |
| Mechanical speed | 350 m/min |
| Self-bonding oven | Hot air circulation and exchange type |
| Length of the oven | 4500 mm |
| Length of softening oven | 7000 - 8500 mm |
| Suitable pay off spool | φ300-400 |
| Take up method | Semi-automatic |
| Suitable take-up spool | PT10-PT25 |
| Namel application method | Felt/die ,inverter control of enamel quantity |
| Application method | Automatic liquid level adjustment paint box |
| Threading method | One belt with two wires |
| Steam generator | Hot exhaust gas is adopted |
| Exhaust gas dispose | Two catalysts burning system |
| Installed electric power | About 135 KW |
|
Specs （mm） |
| φ0.1 |
| φ0.2 |
| φ0.3 |
| DV | Production speed(m/min) | Daily output(kg/24h) |
Daily power consumption Kwh/24h (felt painting) |
|||
| PE | PU | PE | PU | PE | PU | |
| 27-30 | 30-35 | 270-300 | 300-350 | 864-960 | 960-1120 |
Production of QZ-2 enamelled wire Power consumption is about 500 degrees |
| 27-30 | 30-33 | 135-150 | 150-165 | 1728-1920 | 1920-2112 | |
| 27-29 | 30-31 | 90-96.7 | 100-103.3 | 2592-2784 | 2880-2976 | |
